What’s Azure Express Route?

Express Route allows a private connection between the original network and the Microsoft pall. Organizations druggies using Express Route can connect to multiple Microsoft pall services( pall products similar as Microsoft Dynamics 365, Microsoft Azure and Office 365).Public Internet can not be used to establish a connection to the Express Route.

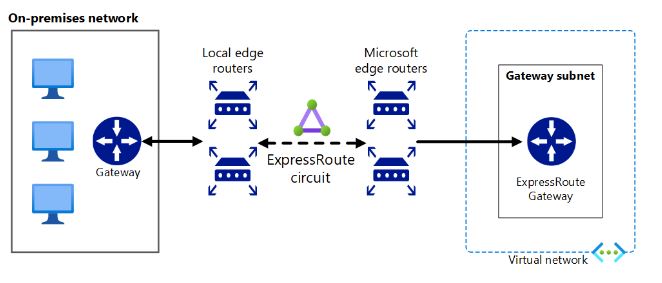

Azure Express Route Architecture

Main benefits of express route

  • Runner routing provides subcaste 3 connection between Azure pall and original network.
  • Increases express route trustability due to erected- in redundancy.
  • Express Route improves security and sequestration by avoiding sensitive business traveling over the public Internet.
  • Supports skype for business.

Characteristics of Express Route

Microsoft uses BGP to establish routing between original networks, Microsoft public addresses, and Azure:

Extravagance:

Each Express Route connection includes two Microsoft Enterprise Edge and two- router connections between the connectivity provider and the original network border. Microsoft ensures that there’s a BGP connection between the connectivity and the edge of the on- demesne network, which is allocated for each MSEE router. For verification of the SLA, a spare Subcaste 3 must be configured.

Microsoft Cloud Services Connectivity:

Express Route enables anyone to pierce the following pall services Microsoft Office 365 Services, Microsoft Azure Services, and Microsoft Dynamics 365.You’re suitable to extend the connectivity beyond geo- political boundaries allowing high quality express route add- on installation.

Express Route Connectivity Model:

Drugs can produce a connection between an on- demesne network and Microsoft Cloud via point- to- point Ethernet, pall- groundedco-location and Universal Connection( IPVPN) connections. Connectivity companies may offer one or further connectivity models.

Point- to- point ethernet connection

On- demesne and Azure can be connected using point- to- point Ethernet providers. connections can be either subcaste 2 or managed subcaste three connections.

Universal Network( IPVPN):

Extended networks can be integrated into the Microsoft pall using IPSec VPN providers. The below providers connect data centers and branch services.Connectivity providers use ExpressRoute circuits that allow connections between original structure and Microsoft.

Express route circuit:

A logical connection between Microsoft cloud services and original structure through a connection provider pertained to as an ExpressRoute circuit.In particular, expressroute circuits are Norway counter plotted to physical realities. rather, they’re linked using a standard GUID, known as a service key( S- key).

Peering Express Route:

For high vacuity, each gaping is configured identically on a brace of routers( in active-active or cargo- participating configurations).

Azure Private Authentication:

Virtual Machines( IaaS) and Cloud Services( PaaS) that are stationed within a virtual network. In Microsoft Azure, the connection is considered a dependable extension of the core network.The below enrollment allows virtual machines and all services to be added directly to the private IP address.

Microsoft ExpressRoute scripts:

Since Office 365 is designed to be penetrated reliably and securely over the Internet, it’s recommended that ExpressRoute be used in special scripts.Microsoft Trust Routing enables two- way connectivity between sphere WANs and Microsoft cloud services. still, the connection must be through public IP addresses that are possessed by the stoner or the connectivity provider. All defined rules must be admired.

Azure Public Peering( disapproved for new circuits):

Some services must be offered in public IP addresses, for example, Azure storehouse, SQL databases, and websites. Connectivity to services hosted on public IP addresses, including virtual IP addresses of all services, can be done intimately through public trust routing disciplines.A connection can be established to a public trust sphere for the stoner DMZ and connected to all Azure services on the public IP address from the stoner WAN without communicating via the Internet.The below routing doesn’t allow connectivity to the sphere stoner network. druggies can subscribe to all Azure services once publication enrollment is enabled. The stoner isn’t allowed to elect the services for which the routes are published.

Conditions for Using Azure ExpressRoute

Microsoft Azure ExpressRoute is a connector that a connectivity provider uses to extend your on-design network to Microsoft Azure and the Microsoft 365 all over a private connection.Azure ExpressRoute supports any- to- anyone( IP VPN) networks and point- to- point Ethernet Networks.However, you can take advantage of virtual cross-connection through a connectivity provider, If you’re using a colocation installation.ExpressRoute delivers connections that are generally briskly and more secure by connection, norway going to the public Internet.

How Express Route connections work?

To use Microsoft cloud services through ExpressRoute, you need to insure that the following prerequisites are in place:

Azure Account Condition:

You need an active Microsoft Azure account. You have set up ExpressRoute circuits, which are coffers within your Azure subscription through your Azure account. Microsoft 365 pall services also bear an Azure subscription.You need an active Microsoft 365 subscription for Microsoft 365 services in the pall.Connectivity provider conditions still, you need a cloud Exchange provider to connect to Microsoft Cloud, If your provider isn’t an ExpressRoute connectivity mate.

Network condition:

  • Azure ExpressRoute comes with a number of network conditions that your organization must meet before using this tool.
  • You need to establish spare BGP sessions between Microsoft’s router and the gaping router on each ExpressRoute circuit. This demand also applies if you run only one physical connection to Cloud Exchange.
  • You must have at least two express route circuits in different gaping locales to establish acceptable redundancy situations.
  • You or your provider must set up and manage BGP sessions for the routing sphere.
  • You need to restate any private IP addresses you’re using within your on-design network into public IP addresses.

ExpressRoute Pricing and Billin:

Azure ExpressRoute offers three billing models designed to meet the requirements of different organizations and use case scripts.

Unlimited Data:

    You pay a yearly figure, while all inbound and outbound data transfer is free.

    You pay a yearly figure and all incoming data transfer is free. You’re charged per GB of outbound data transfer, while rates.

    ExpressRoute Premium is an add- on that expands routes for Azure public and private gaping from,000 to,000, furnishing global connectivity for services and adding the number of VNet links per ExpressRoute circuit.

    Azure ExpressRoute and CoreSite:

    With Microsoft Azure ExpressRoute, you can establish a direct connection to the Microsoft pall at CoreSite’s ExpressRoute locales in Los Angeles, Silicon Valley, Denver, Chicago, Boston, New York, and Northern Virginia. ExpressRoute connections are available through CoreSite Open Cloud Exchange ™ in connection with 50 Mbps, 100 Mbps, 200 Mbps, 500 Mbps, 1 Gbps, 2 Gbps, 5 Gbps, 10 Gbps, and 100 Gbps. The integration of Microsoft Azure ExpressRoute and CoreSite Open Cloud Exchange provides access to stylish- in- class, end- to- end, completely spare connection infrastructures backed by superior performance, better trustability and assiduity- leading vacuum SLAs.

    Uses for Azure ExpressRoute

    Optimal performance : Network connectivity that bypasses the public Internet and provides 44 lower quiescence.

    Lower cost : All data transferred over ExpressRoute private connections benefits from low data pullout rates.

    Enhanced security : Private, secure connectivity to nearly all Microsoft services.

    Trustability : Up to 60 lower variability with private connectivity.

    Azure ExpressRoute and Azure mound – Microsoft Azure Stack enables enterprises to bring the power of Azure’s Cloud cipher to on- demesne surroundings, creating a completely integrated cold-blooded pall result. Guests who use CoreSite data centers to emplace Azure mound have direct access to Microsoft Azure ExpressRoute via CoreSite Open Cloud Exchange, which enables near, low- quiescence connectivity between Azure and Azure Stack cipher coffers.

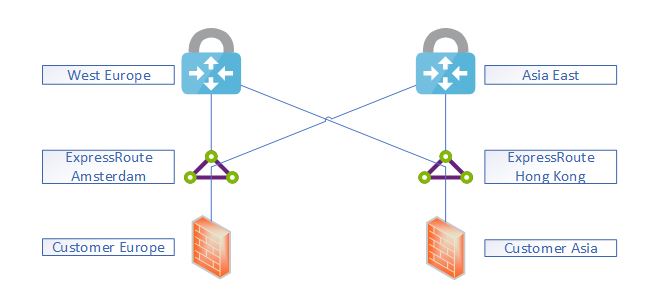

    Example of Express Route

    Benefits of Azure ExpressRoute

    • ExpressRoute is a Microsoft Azure service that lets you produce private connections between Microsoft Azure data center locales and the structure on your demesne or at a colocation installation.
    • Express Route connections don’t go over the public Internet and offer advanced security, trustability and speed with lower quiescence than normal connections on the Internet.
    • ExpressRoute CoreSite is available through the Open Cloud Exchange to CoreSite guests in Los Angeles, Silicon Valley, Denver, Chicago, Boston, New York, and Northern Virginia.
    • You don’t pay for data transfer independently for your Express Route Local Circuit.
    • ExpressRoute Local is a more provident result if you have a large quantum of data to transfer.
    • Azure mound is a completely integrated system that enables enterprises to make, emplace and operate Azure mongrel pall operations on- demesne.
    • Guests who emplace Azure mound within CoreSite data centers will have direct access to Microsoft Azure ExpressRoute via CoreSite Open Cloud Exchange.

    ExpressRoute lets you extend your on-design networks into the Microsoft pall over a private connection with the help of a connectivity provider. With ExpressRoute, you can establish connections to Microsoft cloud services, similar to Microsoft Azure and Microsoft 365.

    Connectivity can be from an any- to- any( IP VPN) network, a point- to- point Ethernet network, or a virtual cross-connection through a connectivity provider at a colocation installation. This allows ExpressRoute connections to offer further trustability, briskly pets, harmonious dormancies, and advanced security than typical connections over the Internet.

    Crucial benefits:

    Subcaste 3 connectivity between your on- demesne network and the Microsoft Cloud through a connectivity provider. Connectivity can be from an any- to- any( IPVPN) network, a point- to- point Ethernet connection, or through a virtual cross-connection via an Ethernet exchange.

    • Global connectivity to Microsoft services across all regions with the ExpressRoute decoration add- on.
    • Erected- in redundancy in every gaping position for advanced trustability.
    • Connection uptime SLA.
    • QoS support for Skype for Business.

    Features:

    Subcaste 3 connectivity:

    Microsoft uses BGP, an assiduity standard dynamic routing protocol, to change routes between your on- demesne network, your cases in Azure, and Microsoft public addresses.

    Further details can be set up in the ExpressRoute circuit and routing disciplines composition.

    Redundancy:

    You may choose not to emplace spare bias Ethernet circuits at your end. Still, connectivity providers use spare bias to ensure that your connections are handed off to Microsoft in a spare manner.You can connect to Microsoft from one of our gaping locales and access regions within the same geopolitical region.

    You will have access to all of Microsoft cloud services hosted in North and West Europe. For an overview of the geopolitical regions, the associated Microsoft pall regions, and corresponding ExpressRoute gaping locales, see the ExpressRoute mates and gaping locales composition.

    Global connectivity with ExpressRoute Premium:

    You can enable ExpressRoute Premium to extend connectivity across geopolitical boundaries.However, you will have access to all of Microsoft cloud services hosted in every region across the globe, If you connect to Microsoft in Amsterdam through ExpressRoute. For illustration, you will have access to services stationed in the West US or Australian East the same way you pierce North and West Europe regions. National shadows are barred.

    Original connectivity with ExpressRoute Local:

    You can transfer data effectively by enabling the Original SKU. With Original SKU, you can bring your data to an ExpressRoute position near the Azure region you want.

    Bandwidth options:

    The supported bandwidths are listed as follows.

    • 50 Mbps
    • 100 Mbps
    • 200 Mbps
    • 500 Mbps
    • 1 Gbps
    • 2 Gbps
    • 5 Gbps
    • 10 Gbps

    Dynamic scaling of bandwidth:

    For further information, see Modifying an ExpressRoute circuit.

    Flexible billing models: You can elect a billing model that works stylish for you.

    Unlimited data: Billing is grounded on a yearly figure; all inbound and outbound data transfer is included free of charge.

    Metered data: Billing is grounded on a yearly figure; all inbound data transfer is free of charge.Data transfer rates vary by region.

    ExpressRoute decoration add- on: ExpressRoute decoration is an add- on to the ExpressRoute circuit. The ExpressRoute decoration add- on provides the following capabilities.

    Increased route limits for Azure public and Azure private gaping from,000 routes to,000 routes.

    Conclusion

    Azure ExpressRoute provides your organization with a number of benefits related to expanding your on-design network with Azure and Microsoft 365 pall structure. It enables you to connect to all services locally and encyclopedically while getting scalable and spare service.
